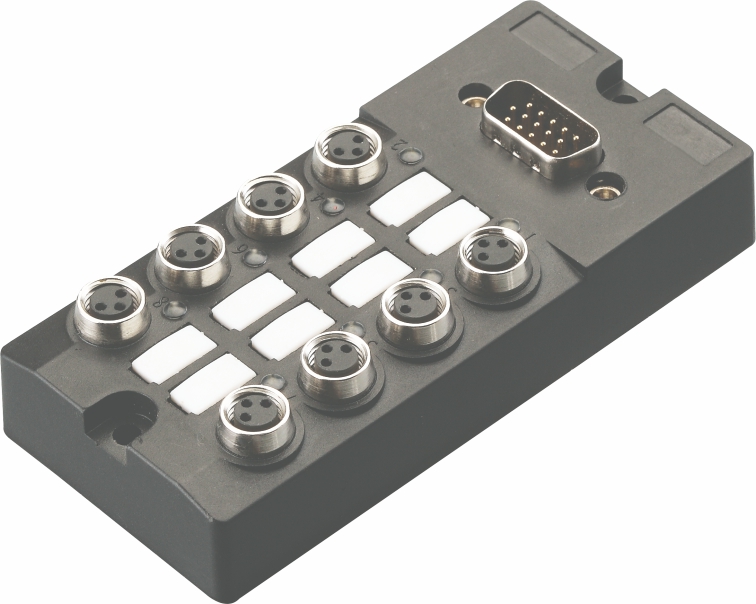

M8 connector D plug type junction box
Feture:
1. Plastic shell,glass fiber reinforced ,high strength.
2. Signal check,Led indicator,PNP/NPN optional
3. Provide single signal,cable prefabricated,length and material can be choose
4. Standard M8 metal threaded connection,the performance is more reliable and versatile.
5. Protection degree IP76.
Model choose:
Model | Output | Specification | Connection | Cable length |
RC080304-ND | NPN NO | M8 connector 3-pin Four bit | Thread M8*1 | 3m |
RC080304-PD | PNP NO | |||
RC080308-ND | NPN NO | M8 connector 3-pin Eight bit | ||
RC080308-PD | PNP NO |
Rating and specification:
Rated voltage | 10V-30V |
Rated current | 2A/Port,10A/Total |
Contact resistance | Max.8mΩ |
Ambient temperature | -20-80℃ |
Material:
Base | PA66+GF |
M8 terminal | Copper gold alloy |
Nut | Copper nickel alloy |
O ring | FKM |
Potting material | Epoxy resin |
Cable material | PVC/PUR |

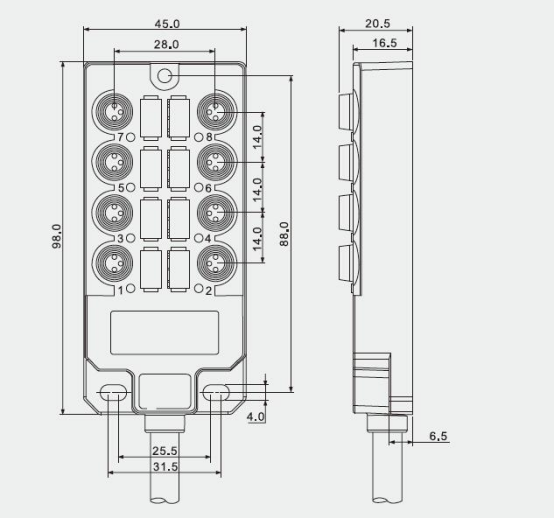

Dimension:

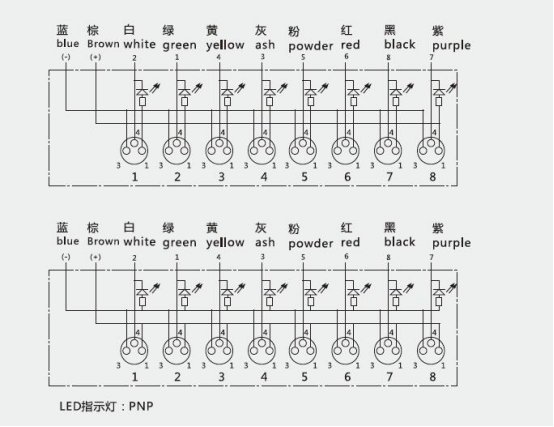

Wiring diagram:
