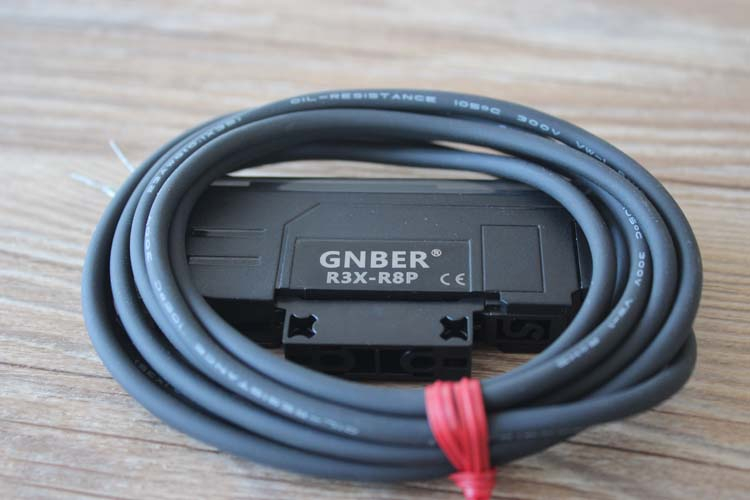

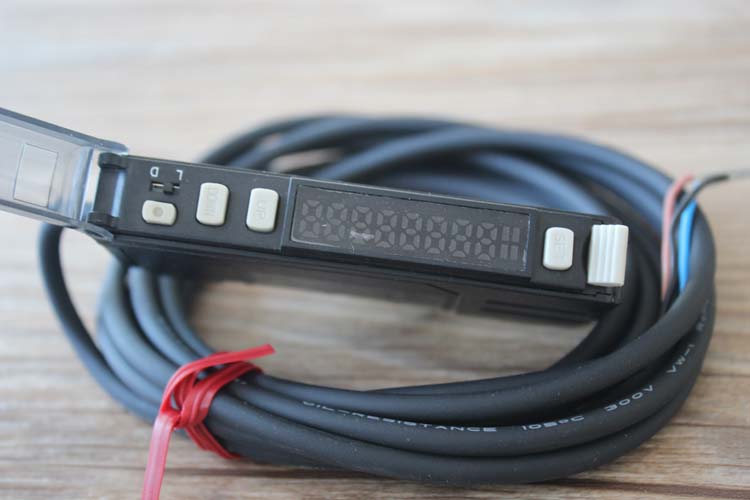

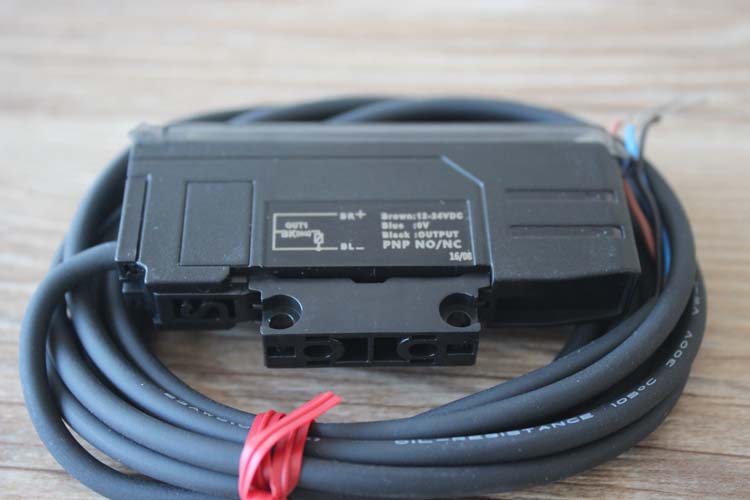

R3X-R8P PNP digit display fiber sensor

PNP

                R3X-R8P

           R3X-R8P-2

Light source

 Red LED,the length of wave is 630mm

Respons time

200μs(Fine),400(Turbo),800μs(Super).6.4ms(Ultur),12.8ms(P-5),25.6ms(P-6)

200μs(P-1),400(P-2),800μs(P-3).6.4ms(P-4),12.8ms(P-5),25.6ms(P-6)

Output form

NO and NC light mode ,dark mode

Protection circuits

Polarity reverse protection over current protection over voltage protection.

TPIDAR

Output off time,the output of the opening time,the output of single time,the output time off.

Timing function

Initialize/Lock/two threshold/automatic and manual setting

Practical function

1-9999mS

Advanced funciton

Luminous power and threshold Synchronous adjustment,Logic output

Supply voltage

12-24vdc±10%

Power consumption

Max.20mA

Environmental photometry

Lamp:max.20,000x    Sunshine:Max.30,000x

Ambient temperature

-20~+55℃

Ambient humidity

35~85%RH

Vibration resistance

10 to 55 Hz full set1.5mm,X.Y.Z each 3 times

Housing material

Polycarbonate

Certificate

CE
