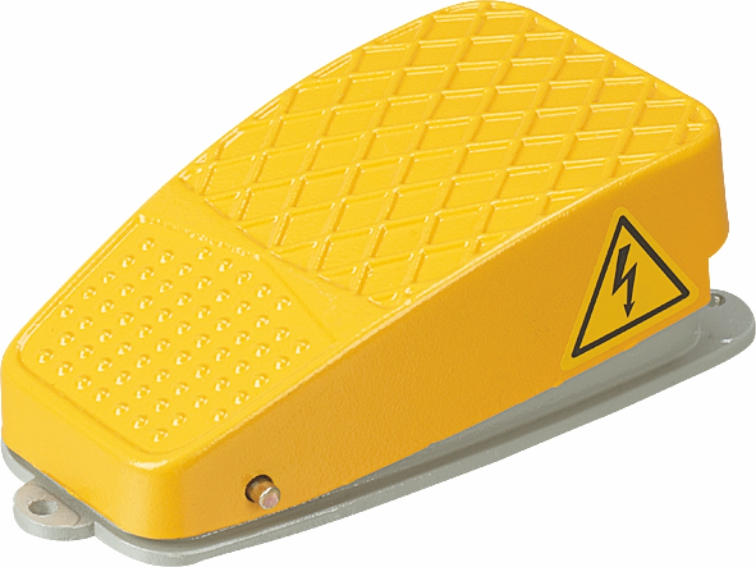

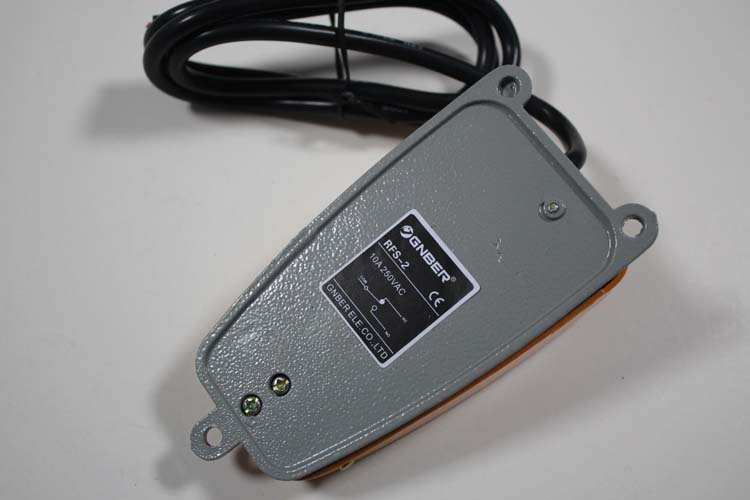

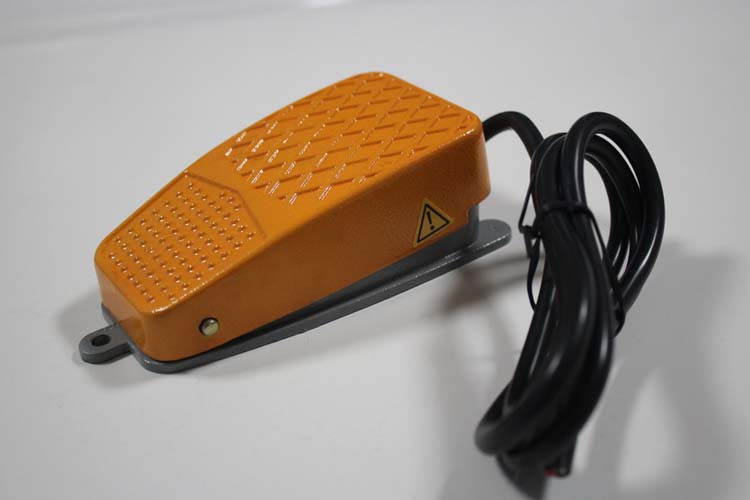

RFS-2 10A 250VAC steel samll type Foot Switch
2. INFORMATION
Brand Name: | GNBER |
Model Number: | RFS-2 |
Certification: | CE/CCC |
Place of Origin: | China |
3. SPECIFICATION
Product Name | RFS-1 | Type | Small type |
Rated load | 10A 250VAC | Internal Switch | RV16-1C25 |
Outlet cable | With cable gland | Contact form | 1A1B |
Shell Material | Steel plate | Contact Material | Silver |
4.Wiring diagram
Specifications:
Type | Model No. | Rated load | Internal switch | Outlet cable | Outlet cable | Contact form |
Small type Fixed type | RFS-1 | 10A 250VAC | RV-16- 1C25 | 0.5mm²*∅3*1m | 1A1B | Steel plate |
RFS-201 | Aluminium alloy | |||||
Standard type Reset type | RFS-2 | |||||
Protecting cover type | RFS--3 | |||||
Protecting cover type | RFS-302 | 15A 250VAC | RZ-15GW22-B3 | With cable gland , no cable | ||
RFS-502 | ||||||
RFS-502H | ||||||
RFS-602 | Special button with spring | |||||
RFS-602H | 2*1A1B | |||||
General midsize | RFS-402 | RZ-15GW22-B3 | 1A1B |
What is a Foot Switch?
An electrical switch is simply a device that opens or closes an electrical circuit, and a foot switch, sometimes called a “stomp” switch, is operated by someone stepping on the actuator, which is typically a pushbutton or a pedal.
What are foot switches used for?
Hands-Free Switching: You may consider getting foot switches for any application where having "hands-free" switching would be helpful.
Examples of "hands-free" applications include:
Guitar amplifiers
Wireless page turner for sheet music (e.g. if you have your sheet music on a tablet or laptop)
Woodworking equipment such as saws, sanders, routers, etc.
Dental chairs
