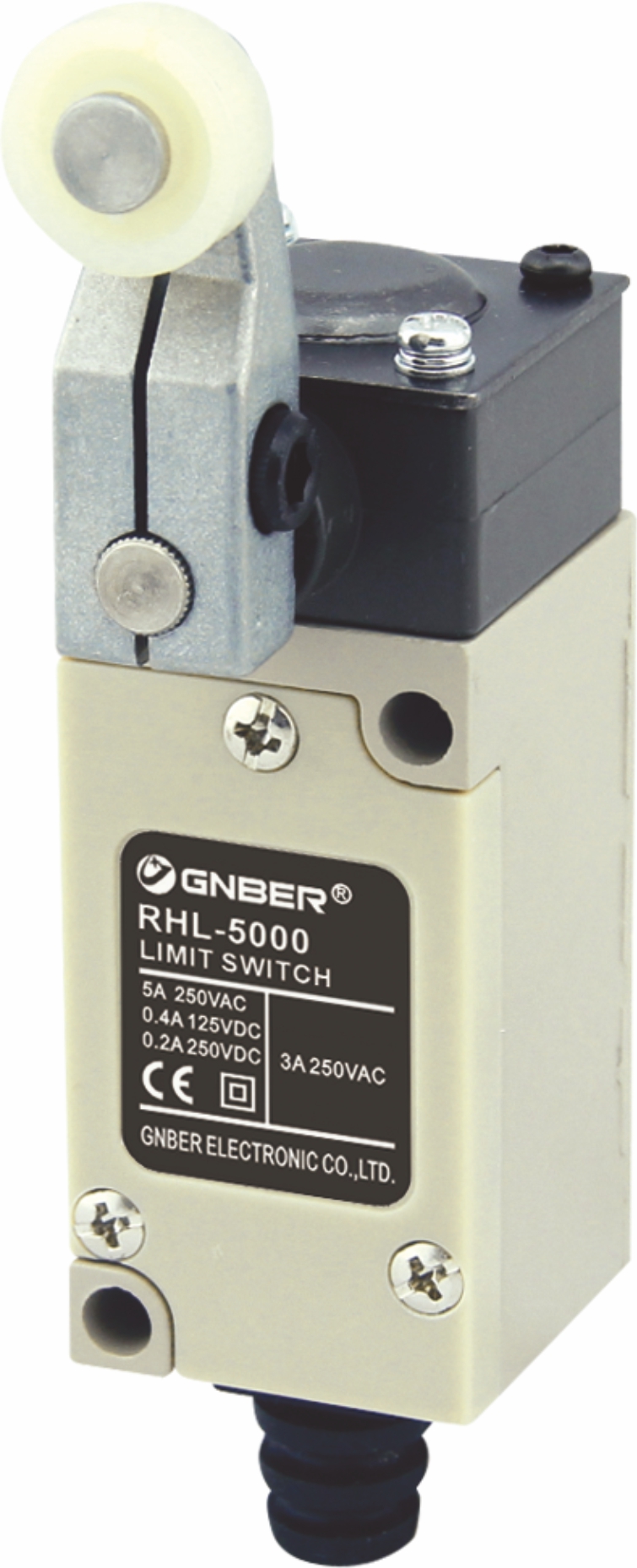

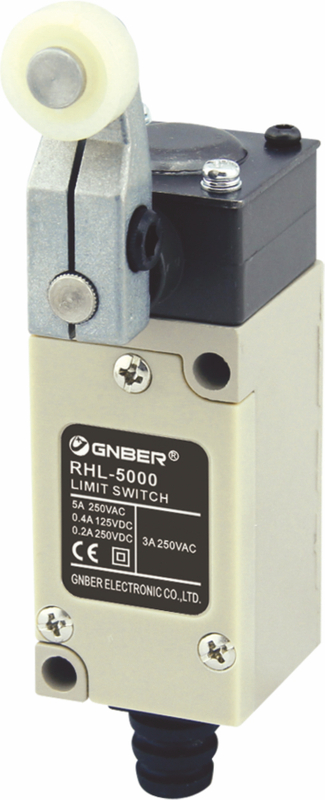

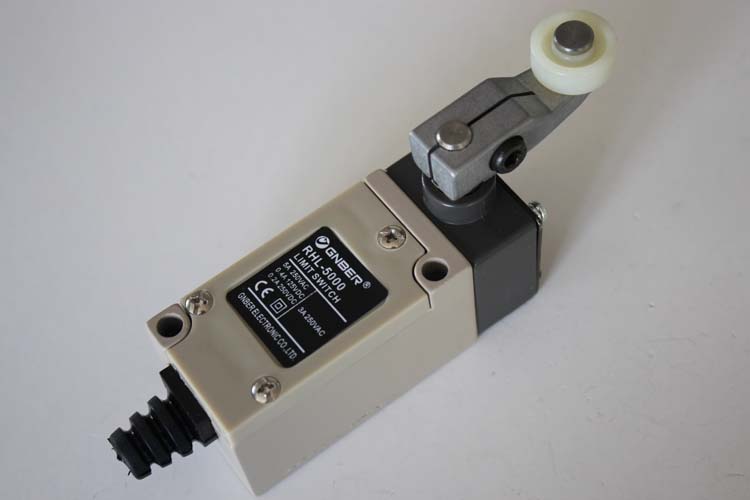

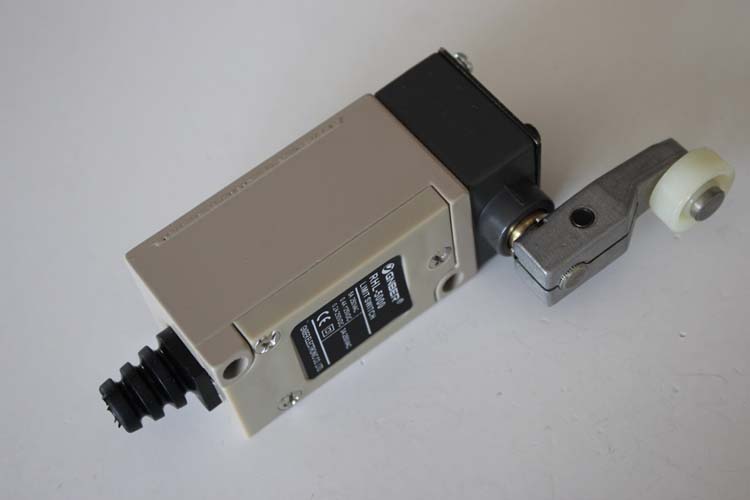

RHL-5000 5A 250VAC roller lever type limit switch
Information:
Brand Name: | GNBER |
Model Number: | RHL-5000 |
Certification: | CE/CCC |
Place of Origin: | China |
Specifications:
Degree of protection | IP65 | |
Ambient operating temperature | -5 to 65℃（without frozen） | |
Ambient operating humidity | 35 to 95% RH | |
Vibration resistance | 10-55HZ 0.75mm Single amplitude | |
Shock resistance | Destruction | 1,000m/s2 min. |
Malfuction | 300m/s2 min. | |
Durability(Mechnical) | 10,000,000 times/min (With rated conditions) | |
Operating frequency | Max.120 times/min | |
Contact resistance | Max.25mΩ | |
Dielectric strength | AC1000V,50/60HZ,1min,Between terminals of the same polarity. | |
AC1500V,50/60HZ,1min,Between current-carrying metal parts and ground. | ||
AC1500V,50/60HZ,1min,Between each terminal and non-current-carring metal part. | ||
Rated frequency | 50/60Hz | |
Insulation resistance | 100Mωmin(DC500V) | |
Operating speed | 5mm/s to 0.5 m/s | |
Operating frequency | 120 times/min | |
Durability Electrical | 500,000 times | |
Structure:
RHL-5000 5A 250VAC roller lever type limit switch
Information:
Brand Name: | GNBER |
Model Number: | RHL-5000 |
Certification: | CE/CCC |
Place of Origin: | China |
Specifications:
Degree of protection | IP65 | |
Ambient operating temperature | -5 to 65℃（without frozen） | |
Ambient operating humidity | 35 to 95% RH | |
Vibration resistance | 10-55HZ 0.75mm Single amplitude | |
Shock resistance | Destruction | 1,000m/s2 min. |
Malfuction | 300m/s2 min. | |
Durability(Mechnical) | 10,000,000 times/min (With rated conditions) | |
Operating frequency | Max.120 times/min | |
Contact resistance | Max.25mΩ | |
Dielectric strength | AC1000V,50/60HZ,1min,Between terminals of the same polarity. | |
AC1500V,50/60HZ,1min,Between current-carrying metal parts and ground. | ||
AC1500V,50/60HZ,1min,Between each terminal and non-current-carring metal part. | ||
Rated frequency | 50/60Hz | |
Insulation resistance | 100Mωmin(DC500V) | |
Operating speed | 5mm/s to 0.5 m/s | |
Operating frequency | 120 times/min | |
Durability Electrical | 500,000 times | |
Structure:
