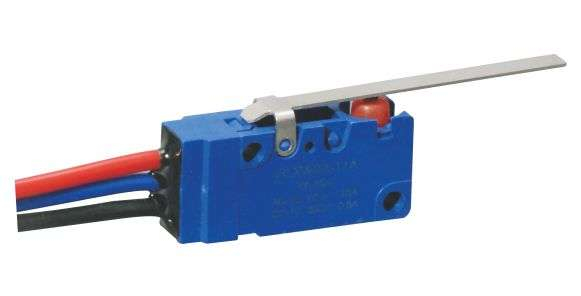

RLXW24-11 Waterproof micro switch
Feature
a. Sensitive motion , high precision , longer life
b. Various contact material is for your selection, Billon/Silver base point to meet different electrical load.
c. Various Actuator for your selection with better protection shell
1.产品通用信息
Brand Name: | GNBER |
Model Number: | RLXW24-11 |
Rated Current | 10A/250VAC |
Certification: | CE/CCC |
Place of Origin: | China |
2.产品商务条款
Minimum Order Quantity: | 20pcs |
Price: | It depends on your quantity |
Payment Terms: | 100%T/T or Paypal |
Supply Ability: | 500,000pcs per month |
Delivery Time: | 7~30 working days according order after received your payment |
Packaging Details: | 20pcs /box 1000pcs /carton carton size(cm): 48.5*28.5*18.5cm |
Specifications:
Use catalogories | AC-12 | DC-12 | |
Rated insulation voltage Ui | 250V. | ||
Convention thermal current Ith | 15A | ||
Insulation resistance Rated work Voltage | 250V | 250V | |
Contact resistance | 10A | 0.3A | |
Technical poperty | Between live elecment and eassily contact surface: AC1500V±3% 45~65Hz 5s Between current-carrying parts and ground: AC1500V±3% 45~65Hz 5s | ||
Life | Mechanical | 300,000 operations min | |
Electrical | 100,000 operations min | ||
Degree of Protection | IP65 | ||
Ambient operating temperature | -5 to +40℃ | ||
