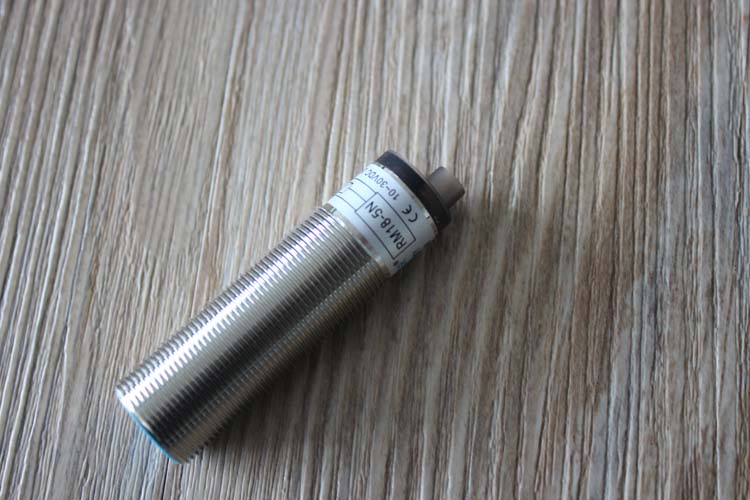

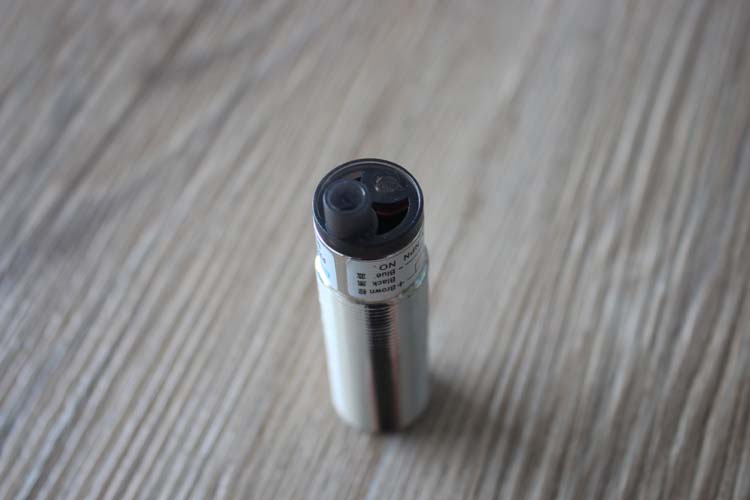

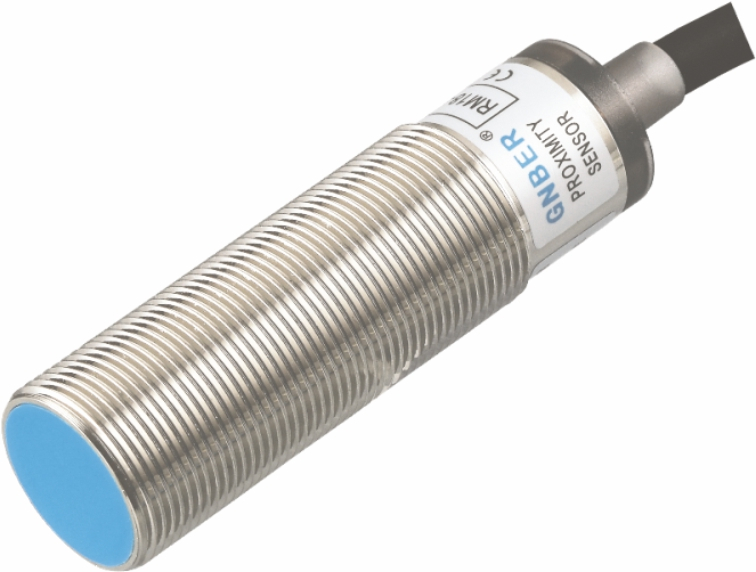

RM18-5N flushed type 5mm NPN NO Inductive proximity sensor
Features of proximity switch:
1. Compact volume
2. High precious of repeated location
3. Diversified exterior structures
4. Good performance of anti-interference
5. Many output forms
6. High ON-OFF frequency
7. Wide voltage range
8. Dust proof,vibration proof,water proof,oil proof
9. With short-circuit protection and inverted conecting protection
10. Long service life
Applications:
1. Various location detection of machinery process center
2. Stopper detection of grinding machine
3. Arm location detection of robot
4. Bottle lid detection
5. Inspection of the existing of milk inside the paper package
6. Spacing detection
Outline Dimension:
Technical parameter:
Mounting | Flushed | No-flushed | Flushed | No-flushed | |
Sensing distance | 2mm | 4mm | 2mm | 4mm | |
Output | NPN NO | RM12-2N | RM12-4N | RM12-2N-G | RM12-4N-G |
NPN NC | RM12-2-NB | RM12-4-NB | RM12-2NB-G | RM12-4NB-G | |
Output | NPN NO | RM12-2P | RM12-4P | RM12-2P-G | RM12-4P-G |
NPN NC | RM12-2PB | RM12-4PB | RM12-2PB-G | RM12-4PB-G | |
Supply voltage | 10...30VAC | 10...30VAC | 10...30VAC | 10...30VAC | |
Load current | ＜200mA | ＜200mA | ＜200mA | ＜200mA | |
Residual voltage | ＜2.5V | ＜2.5V | ＜2.5V | ＜2.5V | |
Current consumption | ＜15mA | ＜15mA | ＜15mA | ＜15mA | |
Hysteresis | 1...20％ | 1...20％ | 1...20％ | 1...20％ | |
Repeatability precision | ＜3％ | ＜3％ | ＜3％ | ＜3％ | |
Frequency | 1500Hz | 1000Hz | 1500Hz | 1000Hz | |
Output indication | LED Red LED | LED Red LED | LED Red LED | LED Red LED | |
Reverse polarity protection | YES | YES | YES | YES | |
Dielectric strength | 1000V/AC 50/60Hz 60s | 1000V/AC 50/60Hz 60s | 1000V/AC 50/60Hz 60s | 1000V/AC 50/60Hz 60s | |
Ambient temperature | -25...+70℃ | -25...+70℃ | -25...+70℃ | -25...+70℃ | |
Ambient humidity | 35...95% | 35...95% | 35...95% | 35...95% | |
Housing material | Nickel-cooper alloy | Nickel-cooper alloy | Nickel-cooper alloy | Nickel-cooper alloy | |
Connection | 2m PVC 2M Cable | 2m PVC 2M Cable | 2m PVC 2M Cable | 2m PVC 2M Cable | |
Certificate | CE | CE | CE | CE | |
