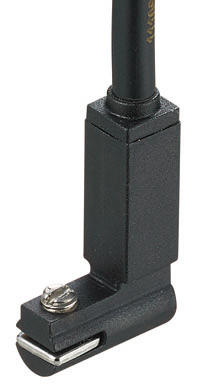

RS1-29 series magnetic sensor for pneumatic cylinder
Specifi
Model | RS1-29D | RS1-29N | RS1-29P |
Wiring method | 2 wires | 3 wires | |
Switch logic | Electronic type non-contact/NO | Electronic tyoe non-contact/NO | |
Output form | Electronic type non-contact/NO | Non-contact NPN | Non-contact PNP |
Voltage range | 10-28VDC | 5-28VDC | 5-28VDC |
Max.switching current | 4-20mA | 50mA | 50mA |
Max.contact capacity | 0.6W | 1.5W | 1.5W |
Internal current consumption | 40μA /24v | 10mA /24dc | 10mA/24vdc |
Residual pressure drop | Max.3.5V | 0.5V/50ma | 0.5V/50ma |
Leakage current | 90μA/28V | Max.0.01mA | Max.0.01mA |
Indicator color | Red | red | green |
Switch sensitivity | 40G-750G | ||
Max.switching frequency | 1000HZ | ||
Operating temperature range | -10-70℃ | ||
Impact resistance | 50G | ||
Vibration resistance | 9G | ||
Waterproof | IEC 529 IP67 | ||
Protection circuit | 4 | 3，4 | 3.4 |
Cable | ∅2.6 3C Black PVC oil resistant(Customized with connector) | ||

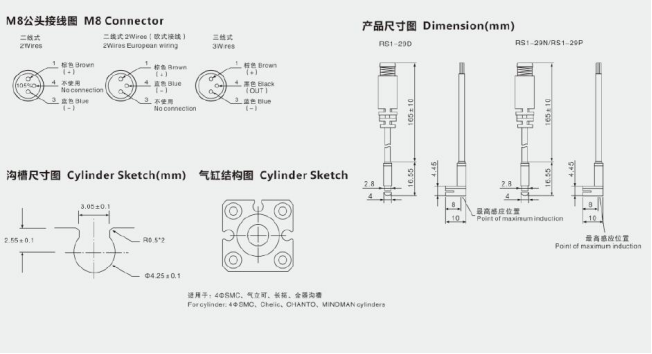

Dimension:
RS1-29 series magnetic sensor for pneumatic cylinder
Specifi
Model | RS1-29D | RS1-29N | RS1-29P |
Wiring method | 2 wires | 3 wires | |
Switch logic | Electronic type non-contact/NO | Electronic tyoe non-contact/NO | |
Output form | Electronic type non-contact/NO | Non-contact NPN | Non-contact PNP |
Voltage range | 10-28VDC | 5-28VDC | 5-28VDC |
Max.switching current | 4-20mA | 50mA | 50mA |
Max.contact capacity | 0.6W | 1.5W | 1.5W |
Internal current consumption | 40μA /24v | 10mA /24dc | 10mA/24vdc |
Residual pressure drop | Max.3.5V | 0.5V/50ma | 0.5V/50ma |
Leakage current | 90μA/28V | Max.0.01mA | Max.0.01mA |
Indicator color | Red | red | green |
Switch sensitivity | 40G-750G | ||
Max.switching frequency | 1000HZ | ||
Operating temperature range | -10-70℃ | ||
Impact resistance | 50G | ||
Vibration resistance | 9G | ||
Waterproof | IEC 529 IP67 | ||
Protection circuit | 4 | 3，4 | 3.4 |
Cable | ∅2.6 3C Black PVC oil resistant(Customized with connector) | ||
Dimension:
