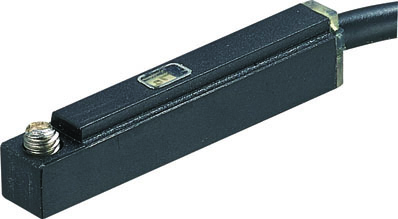

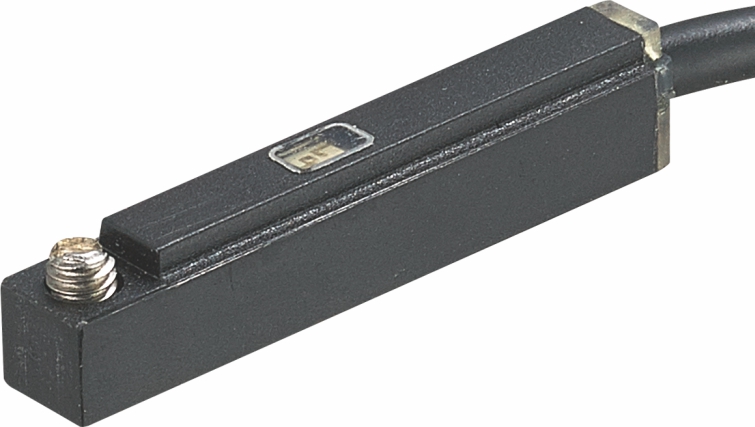

RS1-G series magnetic sensor for pneumatic cylinder

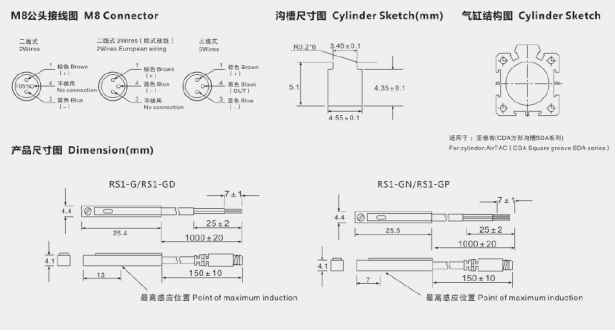

Wiring method

  2 wires

                          3 wires

Switch logic

SPST Normally open

 Electronic type Non-contact-NO

Output form

Contact/reed

Non-contact

Non-contact NPN

Non-contact  PNP

Voltage  range

5-240VDC/AC

  10-28VDC

        5-30VDC

Max.switching current

100mA

50mA

200mA

Max.contact capacity

10W

1.5W

6W

Internal current consumption

-

40Μa/24 vdc

        20Ma/24VDC

Residual pressure drop

2.5V/100ma  DC

2.6V/50ma  DC

0.5V 200ma/DC

Leakage current

-

Max.90μA

Max.0.01mA

Indicator color

Red

red

green

Switch sensitivity

50G

45G-750G

Max.switching frequency

200HZ

1000HZ

Operating temperature range

-10-70℃

-10-70℃

Impact resistance

30G

50G

Vibration resistance

9G

Waterproof

              IEC 529 IP67

Protection circuit

        1

3，4

Cable

    ∅2.8  3C Black PVC(Customized with connector)
