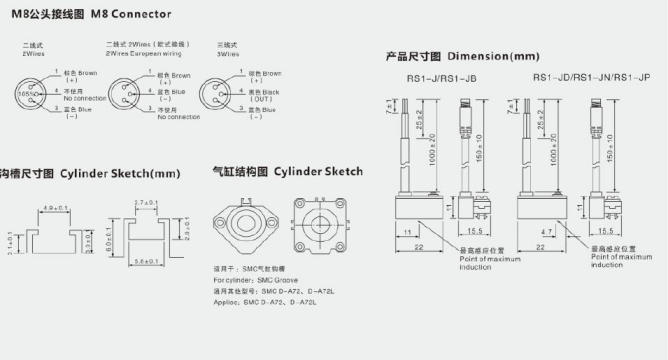

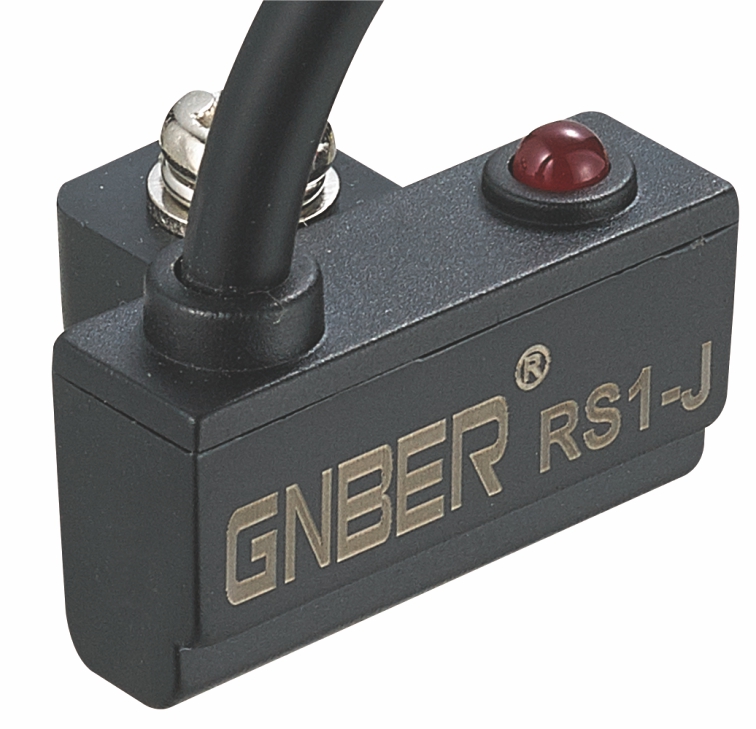

RS1-J series magnetic sensor for pneumatic cylinder

Wiring method

                           2 wires

   3 wires

Switch logic

SPST NO

NC

Electronic tyoe non-contact/NO

Output form

Contact/reed type

Non-contact

Non-contact  NPN

Non-contact  PNP

Voltage  range

5-240VDC/AC

  5-120VDC/AC

  10-28VDC

   5-30VDC

Max.switching current

100mA

50mA

200mA

Max.contact capacity

10W

1.5W

6.0W

Internal current consumption

   -

40μA/24v

20Ma/24vdc

Residual pressure drop

2.5V/100ma

2.65V/50ma

0.5V/400ma

Leakage current

-

90Μa/28V

Max.0.01mA

Indicator color

Red

green

red

red

green

Switch sensitivity

40-50G

40-750G

Max.switching frequency

200HZ

1000HZ

Operating temperature range

-10-70℃

Impact resistance

30G

50G

Vibration resistance

9G

Waterproof

              IEC 529 IP67

Protection circuit

        1

2,4

3,4

Cable

    ∅3.2  3C Black PVC oil resistant(Customized with connector)
