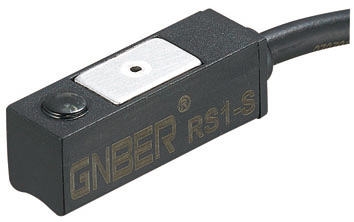

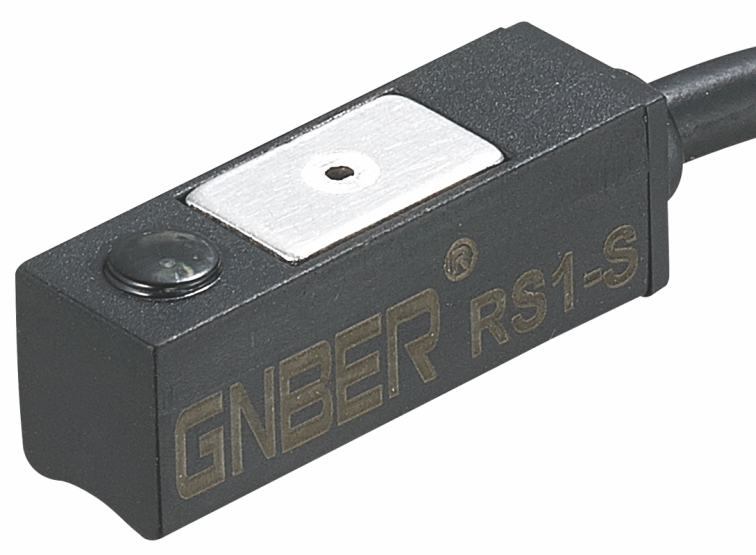

RS1-S series magnetic sensor for pneumatic cylinder

Wiring method

            2 wires

                 3 wires

Switch logic

SPST NO

NC

Electronic tyoe non-contact/NO

Output form

Contact/reed type

Non-contact

Non-contact  NPN

Non-contact  PNP

Voltage  range

5-240VDC/AC

  5-120VDC/AC

        10-28VDC

   5-30VDC

Max.switching current

100mA

50mA

200mA

Max.contact capacity

10W

1.5W

 6W

Internal current consumption

   -

40Μa/24dc

8Ma/24vdc

Residual pressure drop

3V/100Ma DC

3.5V/500ma

1V/400ma

Leakage current

-

90μA/28V

Max.0.01mA

Indicator color

Red

Green

red

red

green

Switch sensitivity

50G

45G-750G

Max.switching frequency

200HZ

1000HZ

Operating temperature range

-10-70℃

-10-70℃

Impact resistance

30G

50G

Vibration resistance

9G

Waterproof

              IEC 529 IP67

Protection circuit

        1

2，4

3.4

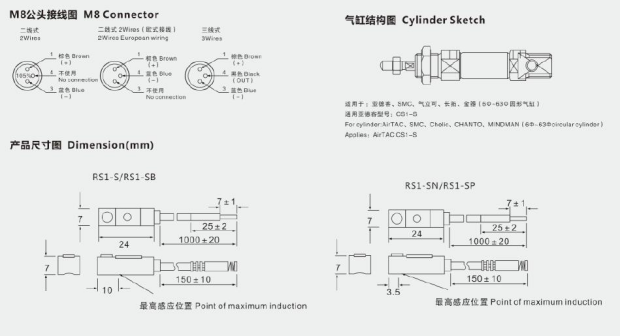

Cable

    ∅2.8  3C Black PVC(Customized with connector)
