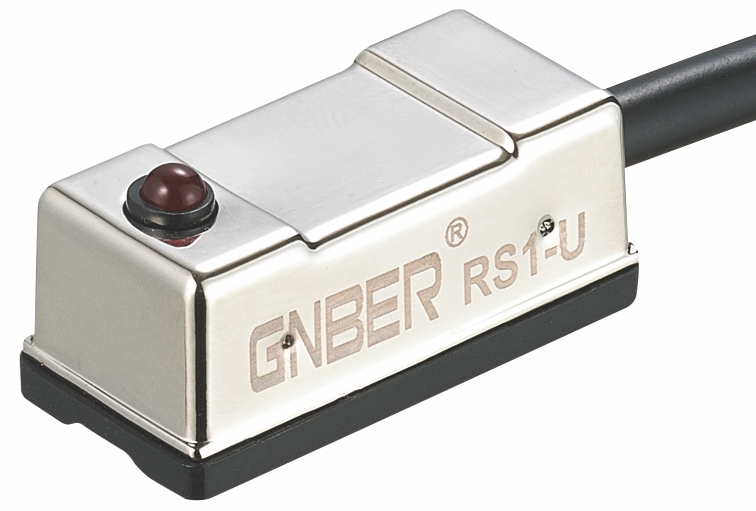

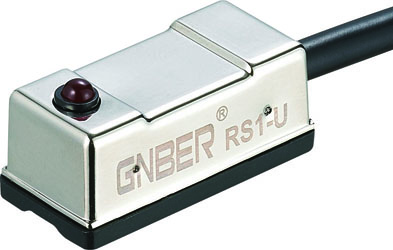

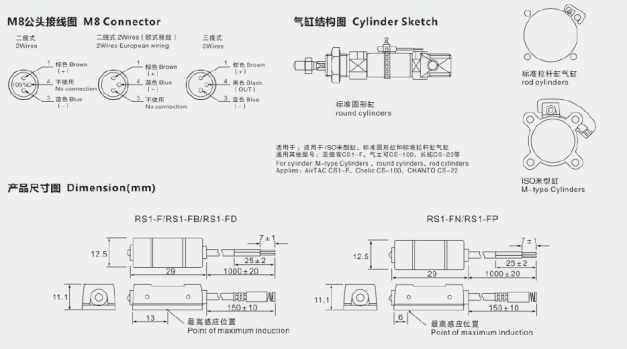

RS1-U series magnetic sensor for pneumatic cylinder

Wiring method

   2 wires

  3 wires

Switch logic

SPST NO

NC

Electronic type/NO

Electronic tyoe non-contact/NO

Output form

Contact/reed type

Non-contact  NPN

Non-contact  PNP

Voltage  range

5-240VDC/AC

  5-120VDC/AC

   5-30VDC

Max.switching current

100mA

50mA

200mA

Max.contact capacity

10W

1.5W

 6W

Internal current consumption

   -

40μA /24dc

20Ma/24vdc

Residual pressure drop

3.0V/100Ma DC

0.1V/50ma

1.5V/400ma

Leakage current

-

90μA/28V

Max.0.01mA

Indicator color

Red

Green

red

red

green

Switch sensitivity

55-65G

40G-750G

Max.switching frequency

200HZ

1000HZ

Operating temperature range

-10-70℃

-10-70℃

Impact resistance

30G

50G

Vibration resistance

9G

Waterproof

              IEC 529 IP67

Protection circuit

        1

2，4

3.4

Cable

    ∅3.8  3C Black PVC oil resistant(Customized with connector)
