HC-001
Screw
WENZHOU
| Availability: | |
|---|---|
| Quantity: | |

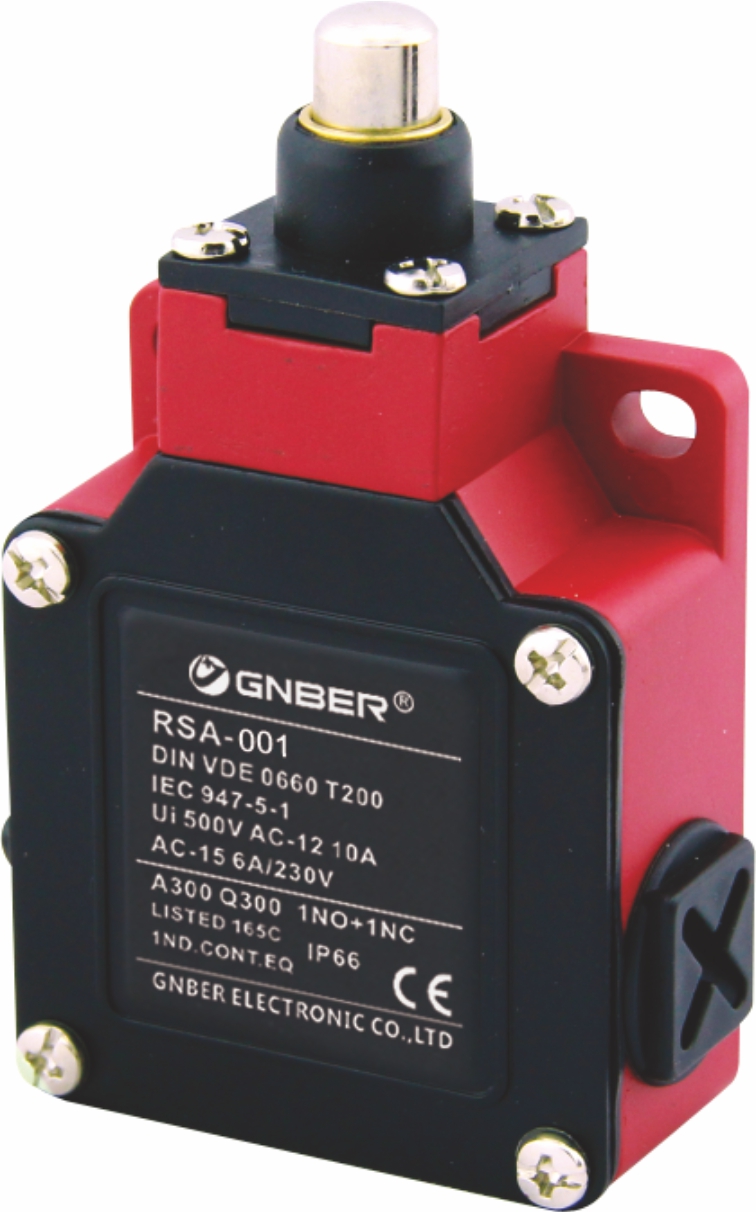

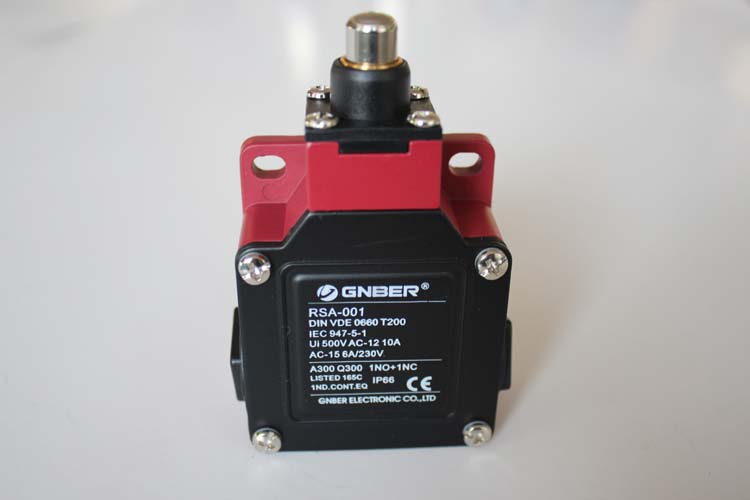

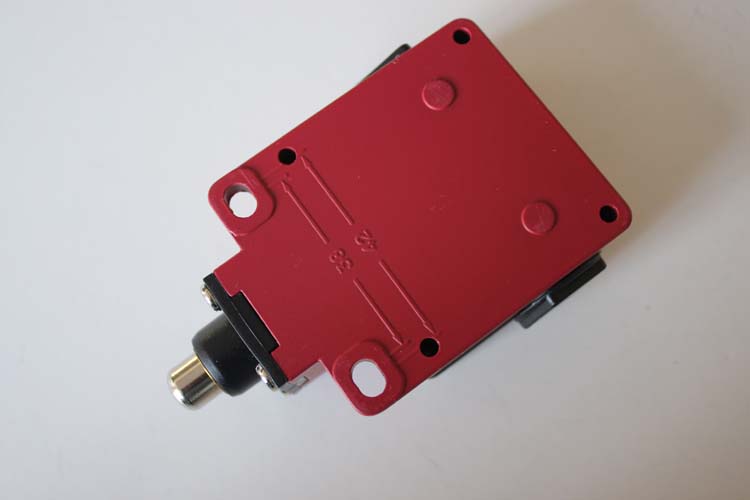

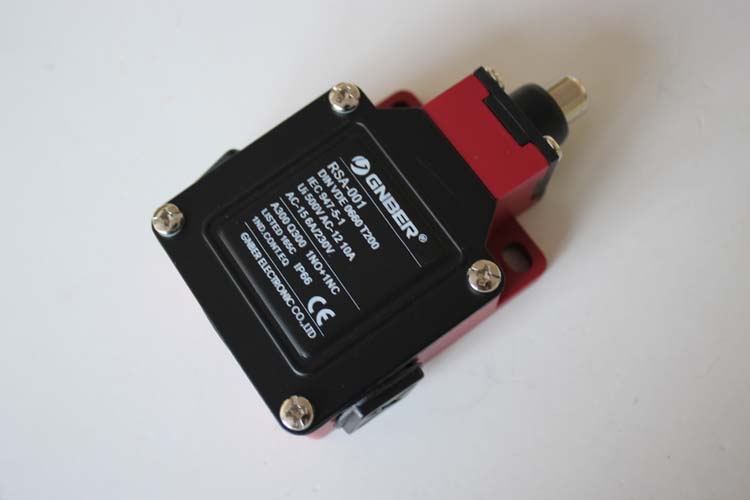

Top plunger stainless Limit Switch
1.High-performance,oil resistant and waterproof
2.Strong metal shell,swing arm will reach to ±95°
3.Long life(20,000,000 mechanical operations)
4.Stainless steel wheel,punch and spring
2.Infirmation
Brand Name: | GNBER |
Model Number: | RSA |
Certification: | CE/CCC |
Place of Origin: | China |
Product Name | RSA | Type | Adjustable roller Lever |
Destruction | 1,000 m/s² min | Malfunction | 100 m/s² min |
Degree of protection | IP66 | Ambient operating temperature | -25~70℃(without frozen) |
Ambient operating humidity | 35~ 95% RH | Vibration resistance | 10~55Hz,15mm double amplitude |
Dimension

Specifications:
Degree of protection | IP66 | |
Ambient operating temperature | -25~70℃(without frozen) | |
Ambient operating humidity | 35~ 95% RH | |
Vibration resistance (Malfunction) | 10~55HZ,15 doubole amplitude | |
Shock resistance | Destruction | 1,000 m/s min |
Malfunction | 100 m/s min | |
Durability | Mechanical | 15,000,000 operations min. |
Operating frequency | Mechanical | 120 operations/min |
Electrical | 30 operations/min | |
Contact resistance | 15 mΩmax | |
Rated insulation voltage(Ui) | 1000 VAC | |
Rated frequency | 50/60 Hz | |
Pollution degree(operating environment) | 3(EN60947-5-1) | |
Protection against electric shock | Class Ⅱ | |
Dielectric strength | Between terminals of same polarity | AC1,000V,50/60Hz,1 min |
Between each terminal and non-current-carrying part | AC2,000V,50/60Hz,1 min | |
Insulation resistance | 100MΩ min | |
Rated operating current(Ie) | 5A | |
Rated operating voltage(Ue) | 250VAC | |
Durability | Electrical | 1000,000 operations/min |
