RSX-671 L-shaped type micro photoelectric sensor
Feture:
1. Dark-ON/Light-ON can be choose.
2. Response frequency as high as 1khz
3. Easy operation monitoring with bright light indicator
4. Wide operating voltage range 5 to 24vdc
5. A wide range of variations in five different shapes
6. Flexible robot cable is provided as a standard feature.
Output circuits:
Model:
Rating and specifications:
Sensing method | Through beam | |
Sensing distance | 5mm(groove width) | |
Sensing object | Opaque materals:2×0.8mm | |
Differential distance | Max.0.025mm | |
Light source | GaAs infrared Led (940mm) | |
Indicator | Light indicator(red) | |
Supply voltage | DC5-24V±10% | |
Current consumption | NPN:Max.35mA PNP:Max.30Ma | |
Control output | NPN opening connector: 5 to 24vdc,Max.100ma 100ma load current with a residual voltage of 0.8V(max). 40ma load current with a residual voltage of 0.4V(max). OFF current (leakage current):Max.0.5ma PNP opening connector: 5 to 24vdc,Max.50ma 50ma load current with a residual voltage of 1.3V(max). OFF current (leakage current):Max.0.5ma | |
Response frequency | 1Khz/min | |
Ambient illumination range | Receiving surface illumination/fluorescent light:max.1,000 lx | |
Ambient temperature range | Operating:-25 to 55℃ Storage:-30 to 80 ℃ (with no ice or condensation) | |
Ambient humidity range | Operating:5 to 85℃ Storage:5-95%RH (with no ice or condensation) | |
Vibration resistance | 20-2000HZ | |
Shock resistance | 500m/s2 .X Y Z each direction 3 times | |
Degree of protection | IP50 | |
Connection method | Connector Models(direct soldering) Pre-wired Models(Standard cable length 1m) | |
Material | Case | Polybutylene phthalate(PBT) |
Cover/Emitter/receiver | Polycarbonate | |

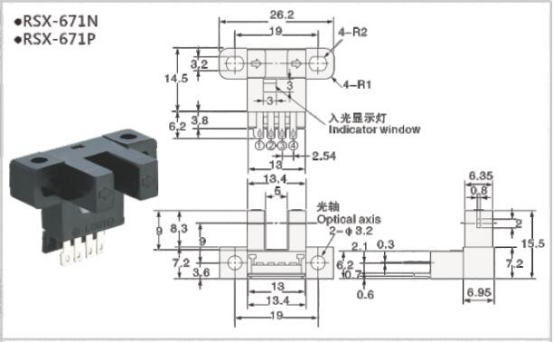

Dimension:
