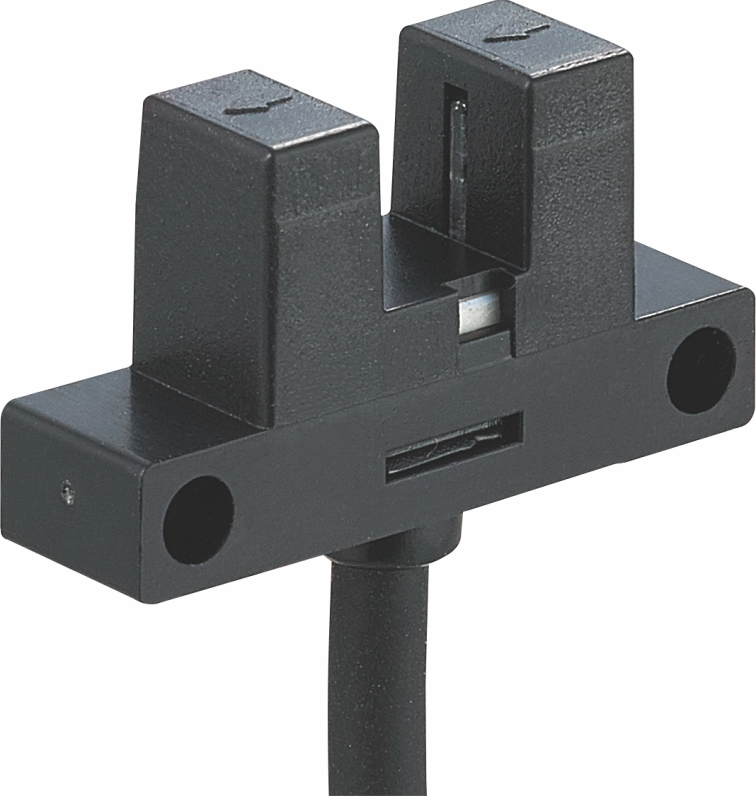

RSX-K24 K-shaped type mini groove type photoelectric sensor
Feature:
1. Miniature size
2. Quick connection type available
3. Dark-ON and Light-ON for choose
4. Response frequency as high as 3KHZ
5. Wide operating voltage:5 to 24VDC
Output circuits:
Model:
Rating and specifications:
Sensing method | Through beam | |
Sensing distance | 5mm(groove width) | |
Sensing object | Opaque materals:1.8×0.8mm | |
Differential distance | Max.0.05mm | |
Light source | GaAs infrared Led (940mm) | |
Indicator | Light indicator(red) | |
Supply voltage | DC5-24V±10% | |
Current consumption | Max.15mA | |
Control output | NPN opening collect transistor: Load current:max.50ma Applied voltage:Max.30VDC(between output and 0V) Residual voltage:Max.0.7V(leakage current 50ma Max.0.4V(leakage current 16ma | |
Response frequency | 1Khz/min(Max.3KHZ/min) | |
Ambient illumination range | Receiving surface illumination/fluorescent light:max.1,000 lx | |
Ambient temperature range | Operating:-25 to 55℃ Storage:-30 to 80 ℃ (with no ice or condensation) | |
Ambient humidity range | Operating:5 to 85℃ Storage:5-95%RH (with no ice or condensation) | |
Vibration resistance | 20-2000HZ | |
Shock resistance | 500m/s2 .X Y Z each direction 3 times | |
Degree of protection | IP50 | |
Connection method | Connector Models Pre-wired Models | |
Material | Case | Polybutylene phthalate(PBT) |
Cover/Emitter/receiver | Polycarbonate | |
RSX-K24 K-shaped type mini groove type photoelectric sensor
Feature:
1. Miniature size
2. Quick connection type available
3. Dark-ON and Light-ON for choose
4. Response frequency as high as 3KHZ
5. Wide operating voltage:5 to 24VDC
Output circuits:
Model:
Rating and specifications:
Sensing method | Through beam | |
Sensing distance | 5mm(groove width) | |
Sensing object | Opaque materals:1.8×0.8mm | |
Differential distance | Max.0.05mm | |
Light source | GaAs infrared Led (940mm) | |
Indicator | Light indicator(red) | |
Supply voltage | DC5-24V±10% | |
Current consumption | Max.15mA | |
Control output | NPN opening collect transistor: Load current:max.50ma Applied voltage:Max.30VDC(between output and 0V) Residual voltage:Max.0.7V(leakage current 50ma Max.0.4V(leakage current 16ma | |
Response frequency | 1Khz/min(Max.3KHZ/min) | |
Ambient illumination range | Receiving surface illumination/fluorescent light:max.1,000 lx | |
Ambient temperature range | Operating:-25 to 55℃ Storage:-30 to 80 ℃ (with no ice or condensation) | |
Ambient humidity range | Operating:5 to 85℃ Storage:5-95%RH (with no ice or condensation) | |
Vibration resistance | 20-2000HZ | |
Shock resistance | 500m/s2 .X Y Z each direction 3 times | |
Degree of protection | IP50 | |
Connection method | Connector Models Pre-wired Models | |
Material | Case | Polybutylene phthalate(PBT) |
Cover/Emitter/receiver | Polycarbonate | |
