RY-M15-1 IP68 Water Float Switch
2.INFORMATION
Brand Name: | GNBER |
Model Number: | RY-M15-1 |
Certification: | CE/CCC |
Place of Origin: | China |
3.SPECIFICATION
Product Name | RY-M15-1 | Max Temperature | 70℃ |
Rated load | 15A 250VAC | Working pressure | 1 Max.lbay |
Protective connection | T70U | Limit circuit breaking capacity | 250V,1KW DC Voltage |
Shell | PPT | Contact Material | Silver |
4.ITEM
Minimum Order Quantity: | 30 pcs |
Price: | negotiaBLE |
Payment Terms: | 100%T/T or Paypal |
Supply Ability: | 50,000pcs per month |
Delivery Time: | 7~30 working days according order after received your payment |
Packaging Details: | 1pcs /box 30pcs /carton |

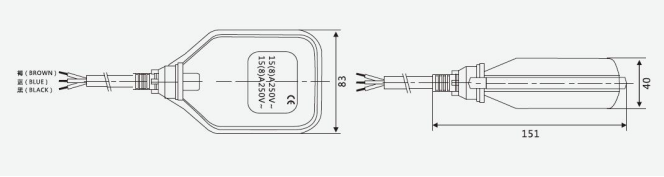

5. Outline dimension:
Operate With Specifications:
May be used for direct level contorl.
In accordance with product electrical specifications.
In the case of approved products, the ground wire will always be included and the ground wire sheath will always be yellow/green..In this case, this two remaining wires are supplied for “high closure”or, specific request,”low closure .”
Electrical Connections
Use wires:”Black”and”blue”With these contacts the regulator Closes when down、Opens when up,The wire that is not used must be correctly insulated .

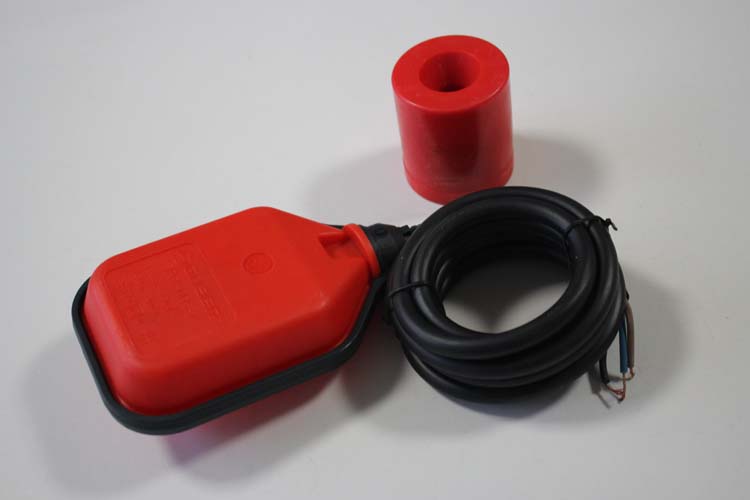

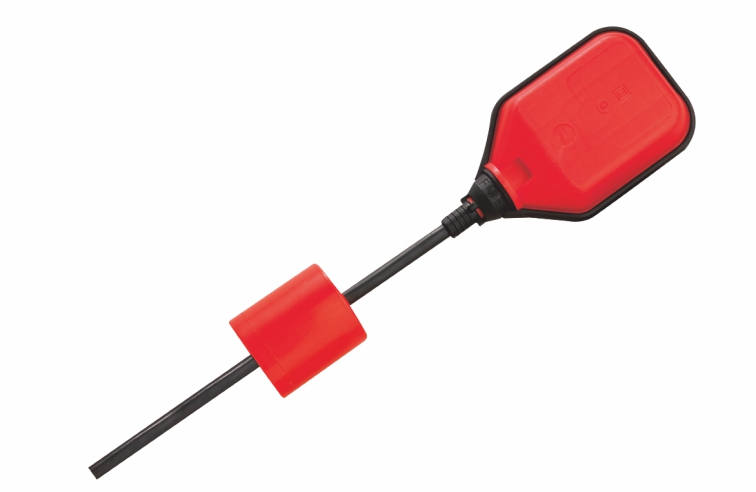

Installation Of Counterwelght
Insert the cable in the counterweight.From the conical part and rotate it , thus causing the plastic ring inserted in the operation can be facilitated with the use of a screwdriver).The ring should then be positioned in the point where it is desired to block the counterweight.
Force the counterweight on the ring by roating it,using a slight pressure.
